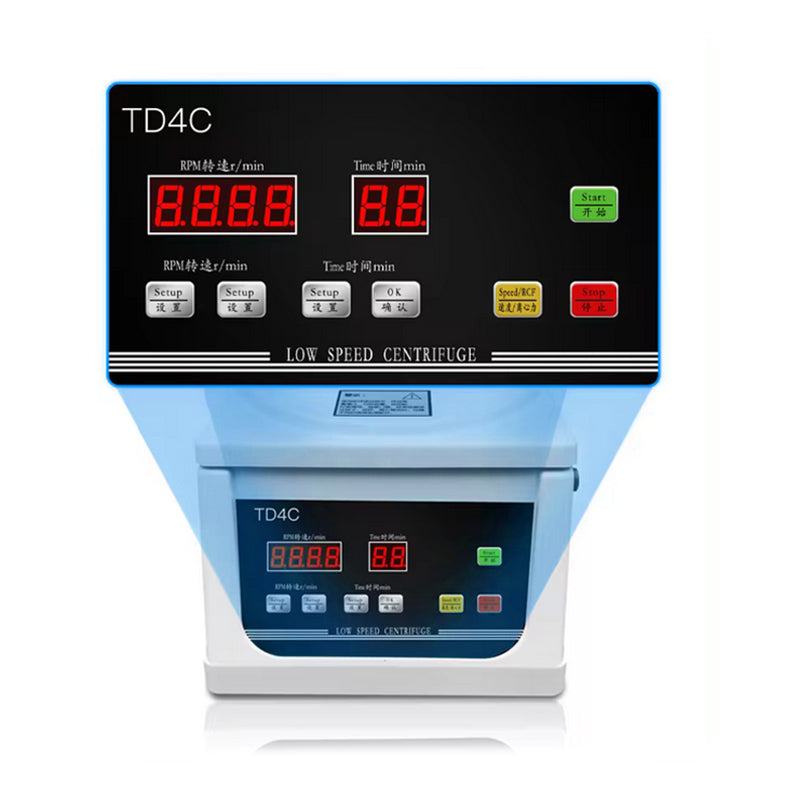

TD4C Professional Desktop Centrifuge — 4000rpm Low-Speed System for PRP PRF & GFC

The TD4C is a clinical-grade benchtop centrifuge engineered specifically for platelet-based regenerative protocols. Driven by a brushless DC motor and governed by microcomputer precision control, it delivers stable, reproducible centrifugation performance across PRP, PRF, and GFC workflows — in a compact, quiet format designed for the demands of professional clinical environments.

Technical Specifications

• Motor: Brushless DC — dust-free, maintenance-free, extended operational lifespan
• Housing: High-quality ABS structure — impact-resistant, chemically stable, clinically safe
• Control System: Microcomputer-controlled with digital display and capacitive touch panel
• Maximum Speed: 4000 r/min
• Maximum RCF: 2200 × g
• Speed Accuracy: ±20 r/min — ensures consistent separation quality across procedures
• Timer Range: 0 – 99 min, programmable by speed (r/min) or centrifugal force (RCF × g)
• Standard Rotor (included): 8 × 20ml angle rotor — suitable for orthopedic PRP and high-volume protocols
• Noise Level: ≤55 dBA — suitable for patient-facing treatment rooms
• Dimensions: 310 × 270 × 220 mm
• Net Weight: 7.5 kg
• Completion Signal: Audible end-of-cycle alert
• Safety: Automatic lid interlock; imbalance detection and auto-stop

Clinical Protocol Compatibility

• PRP — Platelet-Rich Plasma
  Single-spin separation protocol at 1500–3500 r/min. Compatible with ACD-A and Sodium Heparin + Gel tubes (8ml / 10ml / 15ml). Gel separator forms a stable barrier post-centrifugation for clean plasma extraction without a second spin.
• GFC — Growth Factor Concentrate
  Activation-based protocol utilizing GFC Gel tubes (10ml). Platelets are activated post-centrifugation to release PDGF, VEGF, TGF-β, and EGF into a cell-free, high-potency growth factor serum. Delivers significantly higher bioactive factor concentrations than standard PRP.
• PRF — Platelet-Rich Fibrin
  No-anticoagulant protocol at approximately 2700 r/min. Compatible with PRF tubes (10ml / 15ml). Produces a natural fibrin matrix rich in platelets and leukocytes, used for membrane preparation in dental, orthopedic, and wound healing applications.

Clinical Applications

• Aesthetic Medicine — Facial PRP rejuvenation, periorbital treatment, skin texture and luminosity improvement, micro-needling and laser combination protocols
• Hair Restoration — Scalp PRP and GFC injections for androgenetic alopecia; clinically adopted across aesthetic and trichology practices globally
• Orthopedics & Sports Medicine — Intra-articular PRP injection for osteoarthritis, tendon and ligament repair, post-surgical recovery acceleration
• Dermatology — Acne scar revision, stretch mark treatment, post-ablative laser recovery, chronic wound management
• Dental & Implantology — PRF membrane and plug preparation for guided bone regeneration, socket preservation, and implant site healing

Available Rotor Configurations

The TD4C supports four angle rotor configurations, all rated at 4000 r/min / 2200 × g:

• NO.1 — 12 × 5ml / 7ml — Ideal for standard aesthetic PRP, GFC, and hair restoration protocols using small-volume tubes
• NO.2 — 8 × 10ml / 15ml — Most versatile; compatible with 10ml GFC, ACD, Sodium Heparin tubes and 15ml PRF tubes
• NO.3 — 8 × 20ml — Standard configuration (included with purchase); recommended for orthopedic PRP and high-volume protocols
• NO.4 — 4 × 50ml — For high-volume applications, research use, or bulk sample processing

💡 Need a different rotor? Other rotors are available separately — contact us to order or for a compatibility recommendation before purchase.

This is professional medical laboratory equipment intended for use by qualified healthcare professionals in licensed medical facilities. Users are responsible for ensuring compliance with applicable local regulations and manufacturer guidelines.
